Jack Downing

Well Water test Comprehensive + radon.

This proposal outlines the rapid replacement of your existing, failed Fujitsu multi-zone system. Because your current system has suffered a refrigerant leak, we will completely remove the old equipment and replace it with a highly reliable Mitsubishi 2-zone ductless system. Based on our load calculations, your current capacities are perfectly sized for the spaces. We will be installing a standard Mitsubishi heat pump (non-Hyper Heat), which acts as a direct equivalent to your previous system. This will provide you with excellent, reliable air conditioning throughout the summer, as well as highly efficient supplemental heating during the milder spring and fall shoulder seasons. Scope of Work 1. Demolition & Equipment Removal Safe Extraction: We will safely recover any remaining refrigerant, disconnect the electrical components, and completely remove the existing Fujitsu outdoor condenser and the two indoor wall heads. 2. Indoor Equipment (2 Zones) We will supply and install two (2

Installation of a stand-alone dehumidifier rated for crawlspaces. Unit will be installed in crawl with a condensate pump which will take moisture away from the air and transfer it through a condensate pump to the outside. Outside, a 3/4" PVC drain line will be seen to dispose of the moisture. Unit will sit on blocks. Unit will require 120V standard outlet. We can coordinate with our electrical team, listed as a line item, or you can hire your own electrician to install a outlet for use.

Water leak in basement by the water heater was actually from the toilet upstairs. It had a very bad waste water leak at the toilet flange connection. I pulled the toilet and disinfected everything. I then reset the toilet with new hardware and a new gasket. I flushed it multiple times and it is not leaking.

Today I assessed the existing water treatment system. Also, I took a comprehensive + radon water test. Once we receive the results from the laboratory, we will report back to you with the results.

Replace dielectric feed tube on system 2000 hot water tank. Replace anode rod.

Replace tub& shower drain assembly. Replace toilet.

Replace s30 with updated version. Old system likely damaged from power surge.

Replace the fan blade and condenser metal top + fan guard that was damaged by ice. These are special order from the factory, so lead time will vary. For the wine cellar, we cannot source / make a custom drain pan. We will provide you with an estimate to install a dedicated Mitsubishi low-static air handler unit in our commercial P-Series unit to deliver reliable chiller cooling. That estimate will be sent over separately.

Rebuild wash box valve, replace washing machine braided supply hoses, replace kitchen faucet, replace kitchen sink waste drain, replace kitchen faucet hot + cold valves, replace dishwasher valve, replace dishwasher braided supply hose, replace bathroom faucet, replace bathroom faucet hot + cold supply valves.

Look over entire system. Perform AC PM today. Please see the maintenance form for details of servicing. Thank you!!

Clean condenser. Check dual capacitor at condenser. Check refrigerant charge. Vacuum indoor unit. Clean indoor unit condensate drain and flush with cleaner into pump. Check indoor fan motor capacitor. Check operation of system at end of servicing. All set, thank you!

Replace toilet fill valve.

Add 2 pipe hangers to 4" cast waste line. Replace outdoor spigot. Replace kitchen faucet. Cutout old water main shutoff and replace with ball valve.

Upon taking the unit apart to access the horizontal condensate drain pan beneath the Bosch indoor evaporator coil, our technicians (Qwentin and Jack) discovered the true source of the water leak. Rather than a structural crack, the leak was stemming from a pinhole puncture. During the unit's original installation, a sheet metal screw was accidentally driven through the cabinet and directly into the drain pan. Work Performed: Unit Disassembly & Inspection: Safely opened the equipment casing and slid out the drain pan to locate the exact source of the leak. Drain Pan Repair: Permanently sealed the puncture hole in the primary drain pan using high-temperature, water-resistant silicone. Drain Re-piping: Completely re-piped the condensate drain line and trap to ensure proper water flow. System Leveling: Repositioned the emergency secondary drain pan and properly leveled out the entire system to prevent water from pooling or overflowing in the future. ⚠️ IMPORTANT SYSTEM ADVISORY & REC

Replace Kohler shower cartridge under Kohler part warranty. Squealing noise from Lennox outdoor unit was just a loose panel that was vibrating. I tightened the four screws and it went away.

AC PM.

Water test, replace 2 filters, and replace dryer vent.

Replace flapper. Recommend considering replacement. We will email estimate.

System Diagnosis: During our evaluation of your 2.5-ton system, our Service Specialist Qwentin discovered a heavy presence of refrigerant dye in the system. This indicates a previous contractor likely injected a leak-stop or dye product into the lines. We strongly suspect this thick substance has pooled and clogged the piston (the metering device/screen) at the indoor coil, severely restricting the flow of refrigerant and preventing your system from cooling properly. Proposed Scope of Work: To restore proper flow and operation to your system, we will perform a comprehensive line clearing and recharge process. Refrigerant Recovery: Safely and legally recover all existing, contaminated refrigerant from your system. Piston Cleaning: Open the refrigerant lines at the 2.5-ton indoor coil, remove the piston and screen, and thoroughly clean out any dye, sealant, or debris causing the blockage. Filter Drier Replacement: Remove the old liquid line filter drier and braze in a brand-new drier

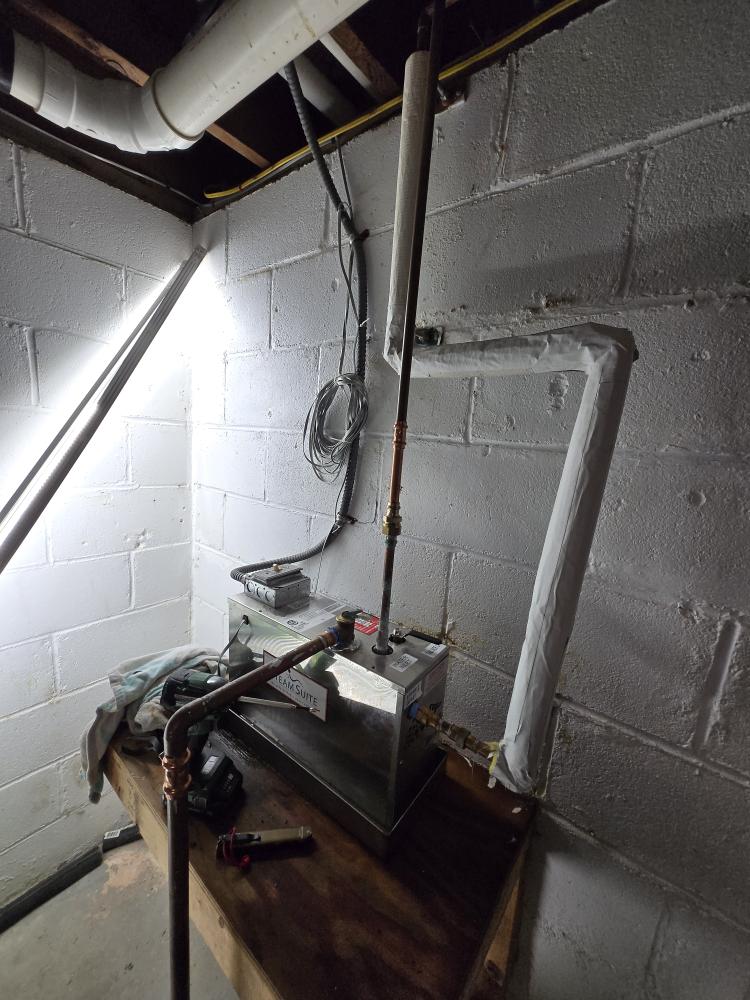

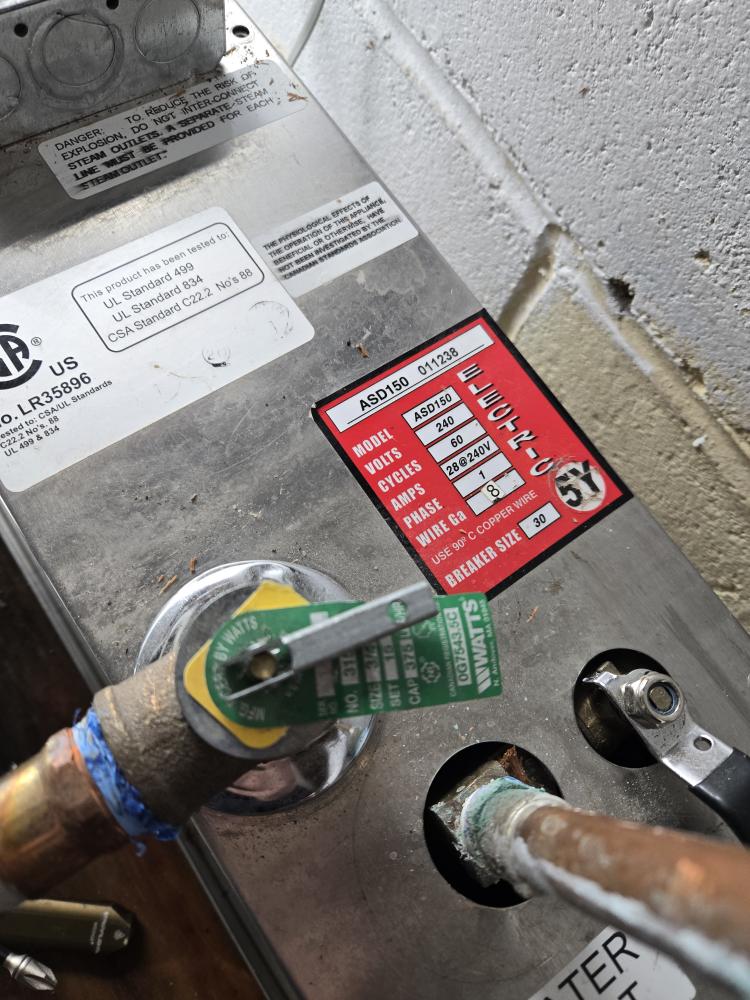

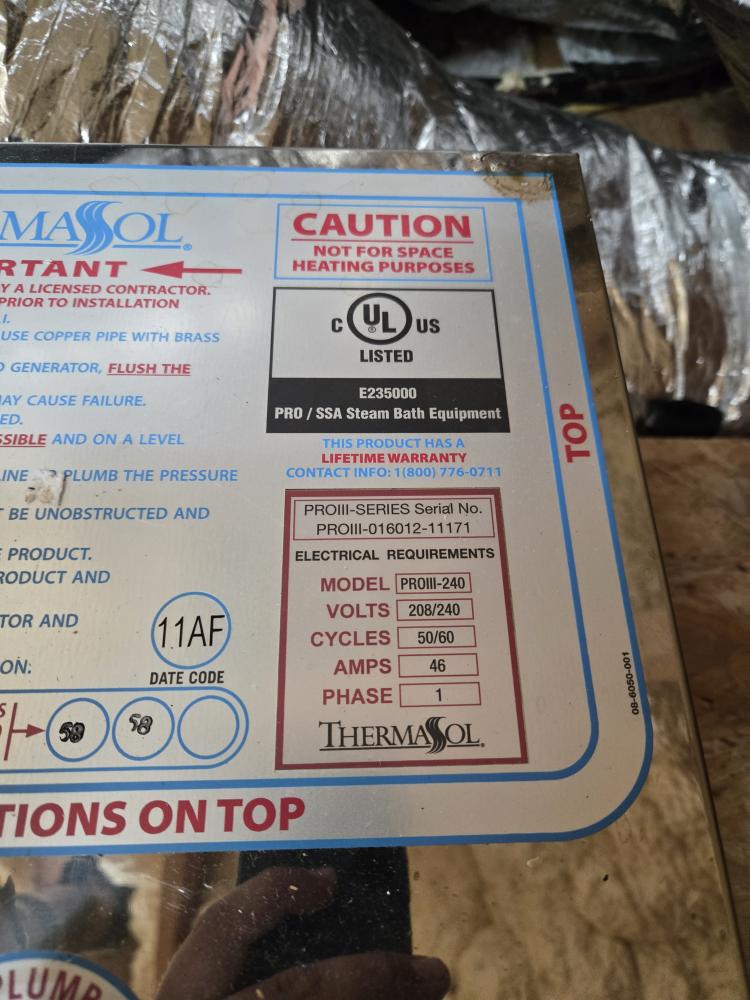

Replace zone bypass board under warranty. Deliver and add salt to softener. Replace steam generator float & fill valve + water & temp sensor. Test operation. Take water test.

I am so sorry to hear about the stressful weekend with the system catching fire! Because the 25-year-old compressor suffered a catastrophic electrical failure, it released its refrigerant and caused what we call an "acid burnout" inside the copper pipes. Due to this severe damage and the age of the system, a safe repair is simply not possible. This option upgrades your replacement to a mid-tier, high-efficiency air conditioning system. This equipment operates much more quietly, provides far better summer dehumidification, and will lower your monthly utility bills compared to a standard unit. Even with the upgraded equipment, I have still engineered this quote to reuse as much of your existing, safe infrastructure as possible to help keep your overall costs down. Scope of Work 1. Equipment Removal & New Line Set Demolition: We will safely dismantle and remove your burned-out outdoor unit and the aging air handler up in the attic. Mandatory Line Set Replacement: Because the compress

Repair 1/2" copper piping. We will come back to replace the bathtub drain and replace the toilet you will purchase.

Diagnosed Corroding fitting on tank. It needs a dialetric ripple- specifically system 2000 special dip tube for proper.operation.

Replace flapper, handle, and stop valve.
